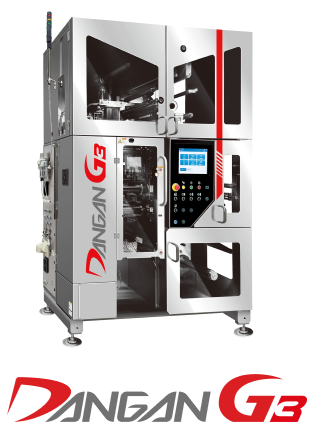

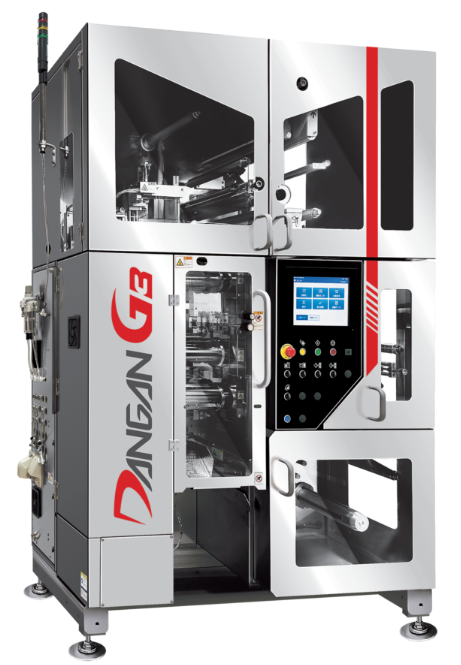

DANGAN G3 Pouch Filling Machines
Introducing the Dangan G3, the latest innovation in the Dangan G series, designed to revolutionize the liquid pouch filling industry. Here are the standout features:
Effortless Operation :
The Dangan G3 is incredibly easy to use, eliminating the need for specialized skills. This machine simplifies the filling process, making it accessible to all operators, regardless of their experience level.
Advanced Dangan Smart System (DSS) :
The built-in DSS includes an auto edge alignment controller, tuckless roll, and flow rate control, ensuring precision and efficiency in every operation.
Intuitive User Interface :
The operation screen features a universal design interface, making it user-friendly and easy to navigate for all operators.
Video Courtesy of Taisei Lamick (Thailand) Co., Ltd.
Supported Packaging Formats
3 Side Seal
3 Side Seal Bottleneck
4 Side / 3 Side Seal
Twin Sachet
4 Side Seal Double Sachet (for G3 Twin Lane Type)
4 Side Seal
Specifications
Standard 4 Division | Standard 6 Division | Large Capacity | |
Packaging Type | 3-side, 4-side | 3-side, 4-side | 4-side |
Line Speed | 4 – 30 m/min | ||
Sealing Pitch | 40 – 160mm | 70 – 180mm (3 Division) | 40 – 160mm(Standard) 100 – 250mm(Large 1) 100 – 250mm(Large 2) |
30 – 90mm (6 Division) | |||
Filling Volume | 3g – 100g | 1.5g – 100g | 5g – 100g(Standard) 5g – 350g(Large 1) 5g – 500g(Large 2) |
Filling volume varies with Twin Lane 4 Side Seal Option | |||
Maximum Output | 400 pcs / min | 500 pcs / min | 400 pcs/min(Standard) 150 pcs/min(Large 1) 60 pcs/min(Large 2) |
In the case of center slit production using the double 4-side seal specification, the production capacity is doubled. | |||
Dimensions | W 1,640 mm ✕ D 830mm ✕ H 2,300mm | ||
Mass | ~1,500kg | ||
Utilities Required | Electricity: 3-phase AC 200V ±20V 4.8kVA Air Pressure: 5 bar | ||
User Customisable Options
Customisable Seal Bar
Seal bars are interchangeable, giving you a freedom to stylise your pouch
Wide range of Cutter Blade
Taisei Lamick’s option of Flat Cut, Perforated Cut, and Wave Cutter, gives the user, freedom to choose their sachet outlook.
Airless Seal Options
Selection of squeezers to attain airless seal that helps in extending shelf life of the product.
Left : With Liquid Squeeze Roller
Right : Without Liquid Squeeze Roller
Standard Pre Heater
The Standard Pre Heater module helps to condition the material before sealing during high speed operation.
Strengthening Pre Heater
For packaging that require higher sealing temperature or ultra high speed operations, Strengthening Pre-heaters are a useful add-on options.
Options available : Left (pictured), Middle & Right Unit to suit user’s need.
Film Tracking Sensor
The film tracking sensor helps to eliminate risk of spillages due to film off alignment.
Ultrasonic Squeeze unit
The Ultrasonic squeeze unit helps to separate particulates in a paste packaging, while maintaining an airless seal
Twin Stage Cutter Module
The two stage cutter module helps to achieve a seamless flow of perforated and full cutting operations.
6-way adjustable nozzle clamp
With the adjustable nozzle clamp, users can mechanically adjust the centering of the nozzles.
Elevation Legs
Elevation legs are milled and welded to achieve a perfect right angle structure. Useful for lines that require pool box, or post processing automation that demands certain operating height.
Adjustable Top Roll
Pneumatically Actuated Top Roll Positioner. This is for customers who wish to maintain flexibility with different packaging sizes.
Inkjet Coding Mount
Taisei Lamick provides various design of mounts for Continuous InkJet Printer (Coder).
There are two mounting options ,
i) inside print (transparent)
ii) surface print (opaque)
